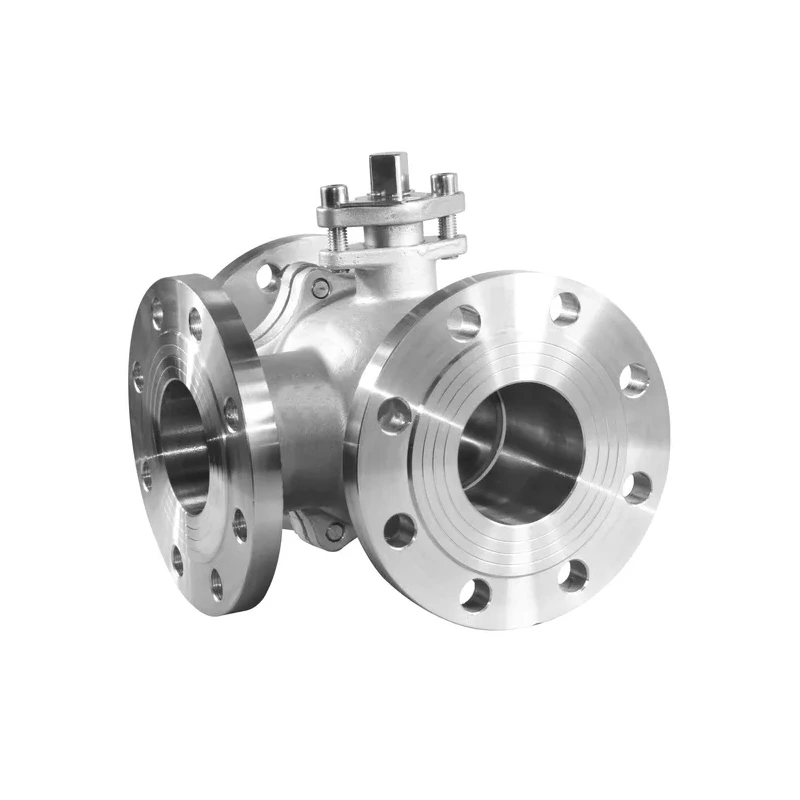

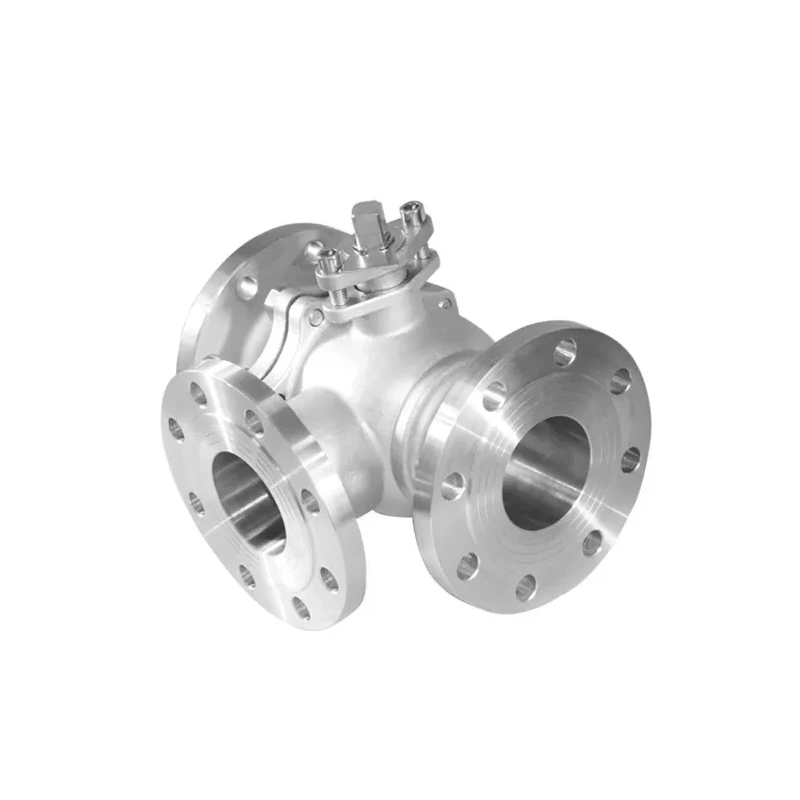

Floating 3 Way Metal Seated Floating Ball Valve Flange Type
Product Description 1. Material: Stainless steel 304 316 WCB 2. Size: DN15~DN100 3. Working pressure: 1000PSI 4. Bore: Full bore 5. Connection type: F
- Structure
- Floating Ball Valve
- Function
- Flow Control
- Specification
- DN15~DN100
- Driving Mode
- Pneumatic
- Channel
- Straight Through Type
- Type
- Floating Ball Valve
- Temperature
- -20~230 Degree
- Application
- Industrial Usage, Water Industrial Usage, Household Usage
Product Description
1. Material: Stainless steel 304 316 WCB
2. Size: DN15~DN100
3. Working pressure: 1000PSI
4. Bore: Full bore
5. Connection type: Flange
6. Suitable media: Water, Air , Oil and some corrosive liquid
7. The specifications can be designed and satisfied for customers' special requirement
Product Parameters
| Product name | Pneumatic Floating Ball Valve Manufacturer |
| 1)Material | SS201 SS304, 304L, 316, 316L |
| 2)Size | Water, Air , Oil and some corrosive liquid |
| 3)Certificate | ISO9001: 2000,CE, CIQ, SGS |
| 4)Working pressure | 1000psi(6.4MPa) |
| 5)Connection Ends | Flange |
| 6)Suitable medium | Water, Air , Oil and some corrosive liquid |
| 7)Temperature Range | -20~230 degree C |
| 8)Investment | Casting body and cap |
| 9)Sealing | PTFE, RPTFE, PPL |
| 10)Stem | SS201,SS304,SS316 Adjustable stem packing, |
| 11)Locking | Option |
| Our advantage | Survival by quality and development by credibility. Quality first, customer upmost ! |
| 100% leakage tested at 100 psi air under water | |
| Blow-out proof stem, ball are made of ss316 or customer request | |
| Pure Teflon seals and seats | |
| Can do OEM products | |
| Shipment | |
| Delivery time | Usually 25 days around and can negotiate as per order qty |
| Term of Payment | 30% TT deposit, the balance against copy of B/L |
| Package detail | inner CTN, outside plywood case |
| MOQ | 20 PCS/size |
| Capacity to produce | 100, 000 PCS/week |
