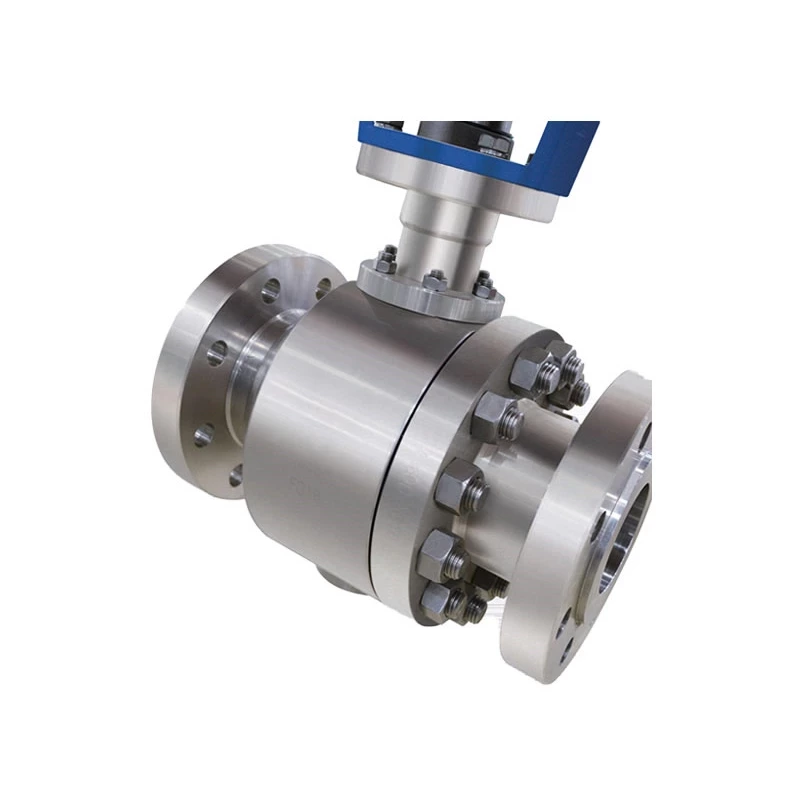

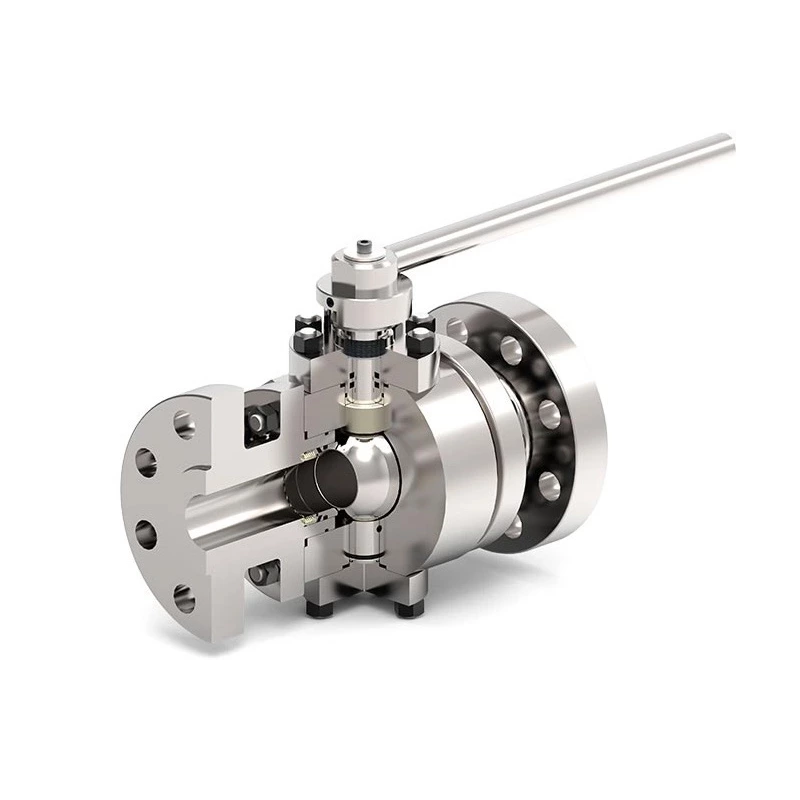

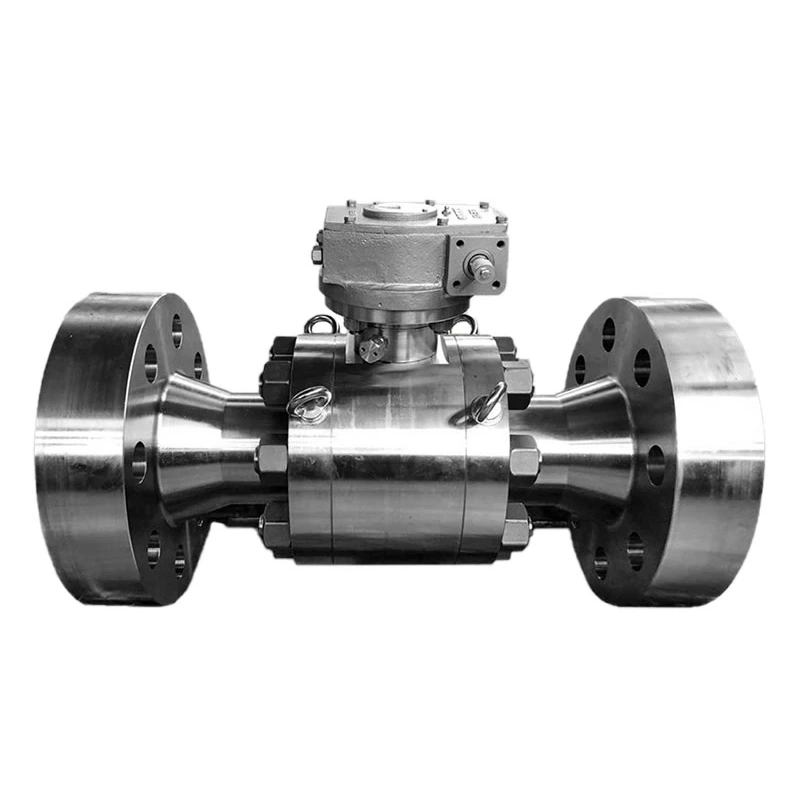

Metal Seat Ball Valve

Metal Seat and Ball are made from base metals coated usually with hard chrome, tungsten carbide, stellite and Ni60. We have both thermal spray coating and cold spray coating available such as Laser Cladding, HVOF (High Velocity Oxy Flame) Coating, Oxy-acetylene flame spray, and plasma Spray process.

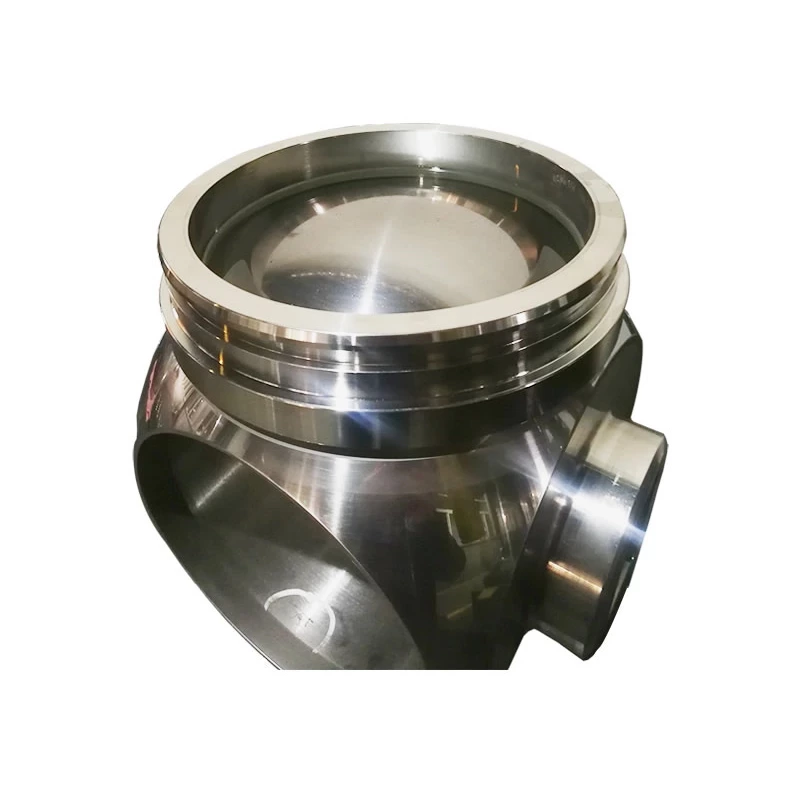

Over the years, we have developed a unique ball lapping technology for the coated ball and seat. Through simultaneous same and different direction of rotation, the ball and the seat result in perfect roundness and fitness, achieving “Zero Leakage”

VALVE DESIGN

Based on API 6D and Customer requirements

TEMPERATURE RANGE

-50.8 to 1022°F (-46 to 550°C)

SIZE

NPS 1-24 (DN 25-600)

PRESSURE RATING

ASME 150 - ASME 2500

FACE-TO-FACE

As per API 6D standard

END CONNECTIONS

RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
SW, Socket Welded as per B16.11
Hub connection

BODY DESIGN

Forged or casting two-piece and three-piece

SEAT DESIGN

Metal seated with Hardfacing on ball and seats

MATERIALS:

Carbon Steel

Stainless Steel

Low-Temperature Carbon Steel

Duplex, Super Duplex, Inconel

OPERATOR

Manual: wrench or Gear with padlocking
Actuated: Pneumatic/ Hydraulic/Electric

TESTING & CERTIFICATIONS

Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
